HPD module

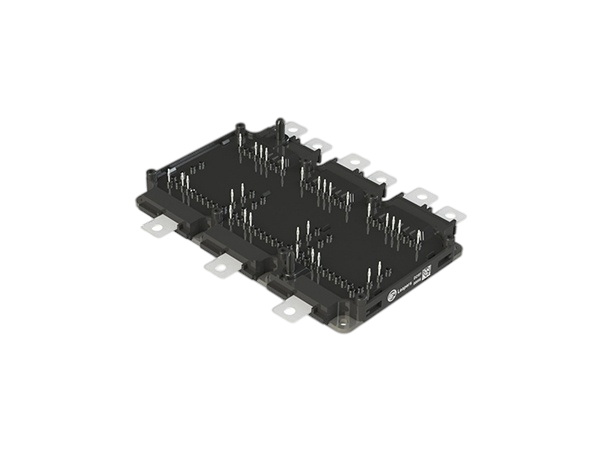

HPD series SiC MOSFET power module, circuit structure is Full Bridge. It integrates a high-performance SiC MOSFET chip and has a built-in temperature sensor. Especially suitable for electric vehicles, motor drives and other applications——Package size:W126.5*L154.5*H32 mm

Leave a message to us
Part Number Type Package Circuit Diagram Blocking Voltage(V) Current(A) RDs(on)(mΩ) Tjmax(℃)
DFS02FB12HDW1 SiC HPD SIC 3-Phase 1200 800 2.1 175
DFS02FB12HDB1 SiC HPD SIC 3-Phase 1200 800 1.7 175
DFS03FB12HDW1 SiC HPD SIC 3-Phase 1200 600 2.8 175
DFS03FB12HDB1 SiC HPD SIC 3-Phase 1200 600 2.2 175
DFS04FB12HDW1 SiC HPD SIC 3-Phase 1200 400 4.2 175
DFS04FB12HDB1 SiC HPD SIC 3-Phase 1200 400 3.4 175
